99% fixed Carbon graphite is High purity Graphite additive material
thermal shock resistance

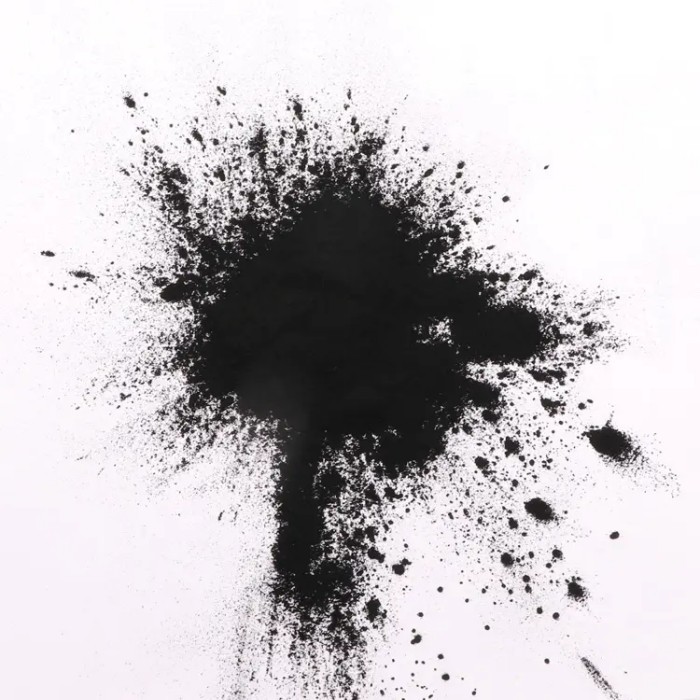

High Purity Graphite
High purity graphite was made from reaction of flake graphite and
various kinds of acids. Acid removes the impurities inside flake
graphite, and boosts the purity to 99-99.98%. It is widely used in
advanced refractory materials and coatings in the metallurgical
industry, military industrial pyrotechnic material stabilizers,
pencil leads in light industry, carbon brushes in the electrical
industry, electrodes in the battery industry, Fertilizer industry
catalyst additives, etc.
| Grade | Fixed Carbon
(%) | Particle Size
(mesh) | Moisture
(%) | PH | Fluoride
(ppm) | Chloride
(ppm) |
| HS3299AA | >99 | +32 | <0.5 | 6-8 | <50 | <50 |
| HS59998AA | >99.98 | +50 | <0.5 | 6-8 | <50 | <50 |
| HS59995AA | >99.95 | +50 | <0.5 | 6-8 | <50 | <50 |
| HS599AA | >99 | +50 | <0.5 | 6-8 | <50 | <50 |
| HS899AA | >99 | +80 | <0.5 | 6-8 | <50 | <50 |
| HS599 | >99 | +50 | <0.5 | 3-6 | * | * |
| HS5999 | >99.9 | +50 | <0.5 | 3-6 | * | * |
| HS+199AA | >99 | +100 | <0.5 | 6-8 | <50 | <50 |
| HS-199AA | >99 | -100 | <0.5 | 6-8 | <50 | <50 |
- Special grades with different specs are also available on
request. Please contact us for details.
High-purity graphite (also known as: scaly high thermal
conductivity carbon powder) has the advantages of high strength,
good thermal shock resistance, high temperature resistance,
oxidation resistance, small resistivity, corrosion resistance, and
easy precision machining. It is an ideal inorganic non-metal
Material. Used for processing and manufacturing electric heating
elements, structural casting molds, crucible boats for smelting
high-purity metals, heaters for single crystal furnaces, graphite
for EDM, sintering molds, electron tube anodes, metal coating,
graphite crucibles for semiconductor technology, Graphite anodes,
grids, etc. for emitting electron tubes, thyratrons, and mercury
arc rectifiers.
It has the advantages of high temperature resistance, corrosion
resistance, thermal shock resistance, self-lubricating, and small
resistivity, etc.
Our Regular Flake Graphite is the right solution for:
Battery applications.
Catalysts in chemical fertilizer industry.
Additive material for plastics and rubber products.
Carbon brushes.
Powder metallurgy applications.
Raw material for graphite foil.
Fuel cell applications.
High temperature coatings.
Crucibles for melting chemical reagents.
High quality synthetic diamonds.
