Natural Flake Graphite is mainly used for metallurgical, mechanical, electrical, chemical,
textile, defense industry, electronics, light industry. Such as
refractories, made crucible, Bricks, steel ingot protective agent;
for conductive materials, producti on of carbon nanotubes, phone
parts, CRT coatings; also can be used as wear and lubrication
materials; anti corrosion materials; for casting, foundry, die and
high temperature metallurgical materials.
Specification of graphite powder: Flake graphite standard GB T 3518-2008
According to the carbon content:
high-purity graphite 99.99-99.9%
high-carbon graphite 99-94%,
medium-carbon graphite 93-80%, ,
low-carbon graphite between 75-50%.
Specifications: 10 mesh, 32, 50, 80, 100, 325 mesh, micro powder can be customized.
Properties: The scales are crystallized completely. Thin and tough. Excellent
physical and chemical properties, with good temperature
resistance, self-lubrication, thermal conductivity, electrical
conductivity, thermal shock resistance and other properties.
Micronized graphite Lubricating oil graphite powder Casting
graphite
Variety: FS.F Specification: particle size 1-38μm
| Type | Spec. |
Particle Size | Size(%) | Carbon Contents
(%) | Moisture
(%) |
| Screen Oversize | Screen Undersize |
High Carbon
Graphite | 32Mesh | 560 um | ≥80 | | 94-99 | ≤0.5 |
| 50Mesh | 300 um |
| 80Mesh | 180 um |
| 100Mesh | 150 um |
| 150Mesh | 100 um | ≥75 | |
| -100Mesh | 150 um | | ≥80 |
| -200Mesh | 75 um |
Middle Carbon
Graphite | 32Mesh | 560 um | ≥80 | | 85-93 | ≤0.5 |
| 50Mesh | 300 um |
| 80Mesh | 180 um |
| 100Mesh | 150 um |
| 150Mesh | 100 um | ≥75 | |
| -100Mesh | 150 um | | ≥80
|

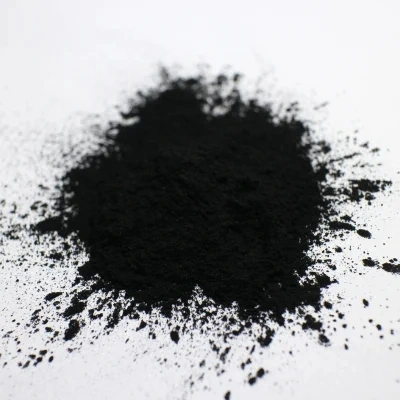

Detailed Photos
Usage:
Crystalline flake graphite is widely used as an essential
nonmetallic mineral in almost all industries, it can be use as
high-quality refractory
material or coating in metallurgical industry, stabilizer
inmilitary industry, black lead in light industry, carbon brushin
electronics industry , electrode
in battery industry and catalyst in chemical fertilizer in
industry, to name just a few. After being deep processed,
crystalline flake graphite can be
used to product TV tube coating graphite sealing material and
composite meteral. graphite products, graphite friction reducing
additives and many
other high-techproducts.
